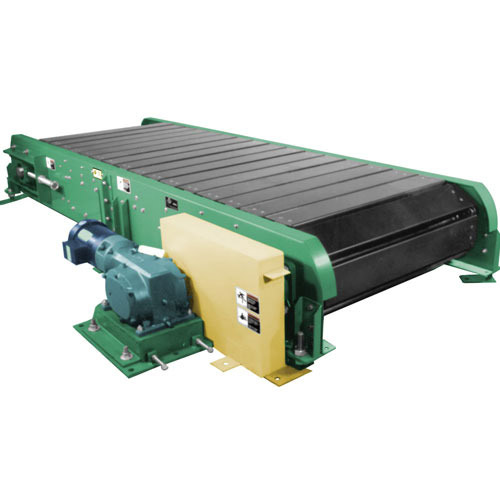

We offer slat conveyor having one or more endless chains to prevent overlapping and interlocking spaced slats. The slats are either of wood or flanged metal. Our slat conveyors are very useful for handling heavy loads of heated materials. end drive C Located at a discharge end of the conveyor. Chain guard located on left-hand side.
SLATS : Coold Formed steel slat, 5-3/4 in. x 1-1/2 in. x
7 ga. channel.
CHAIN : 4-6 in. pitch bushed roller steel chain with 2 in. dia. high
capacity roller bearing. BED 17 in. deep x 10 ga. formed steel channel
powder painted. Standard 5 ft. and 10 ft. long sections bolt together with
butt couplings.
DRIVE SPROCKETS : 12 in. pitch dia. With 2-15/16 in. dia. shaft.
TAKE-UP : Take-ups provided at tail sprockets. Provides 15-1/2 in. of chain
take-up. BEARINGS Sealed, pre-lubricated, self-aligning, ball bearings at
drive and tail sprockets.
SPEED REDUCTION : Heavy-duty sealed worm
gear C-Face speed reducer. No.100 roller chain to drive sprocket. Equipped
with shear pin hub.
MOTOR 2 HP 230/440/460V 3 Ph. 50-60 Hz. Energy Efficient C-Face and MD65 AC
variable speed controller with soft start capability and motor overload
protection.
ELECTRICAL CONTROLS Not furnished as standard equipment. See below.
CONVEYING SPEED : Constant 30 RPM.
CAPACITY : Maximum load per linear foot of conveyor 1400 lbs. NOT TO EXCEED
capacity in chart.
FLOOR SUPPORTS : Now supplied as optional equipment.
