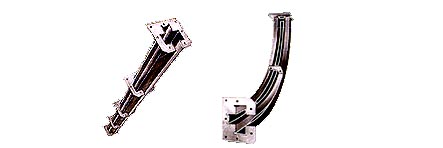

The Straight Power Track Conveyor is made out of MS rolled angle or 10BG cold formed sheet with dimension 36 X 36 X 3 mm and standard length of 2500 mm. This system is fitted with a supporting track bracket of 4 mm thick at 625-mm pitch. The track can be made to special angle, if required.
The Conveyor Horizontal curves is fabricated from 10BG cold formed sheet with 36 X 36 X 3 mm section. It forms a central line reduce of 600-1200 mm with standard angle of 30°, 45°, 60°, 90° or special angle required by clients.
